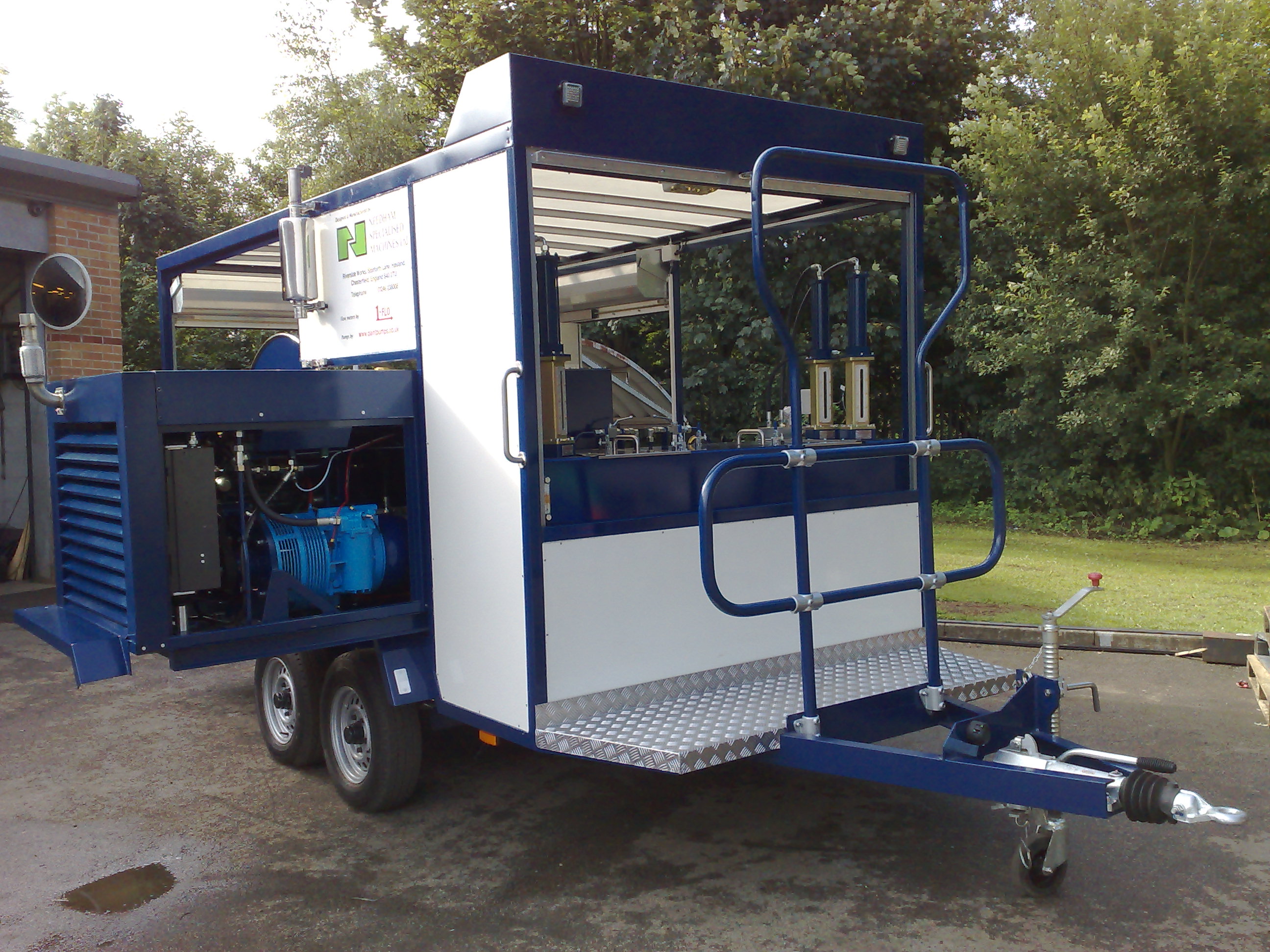

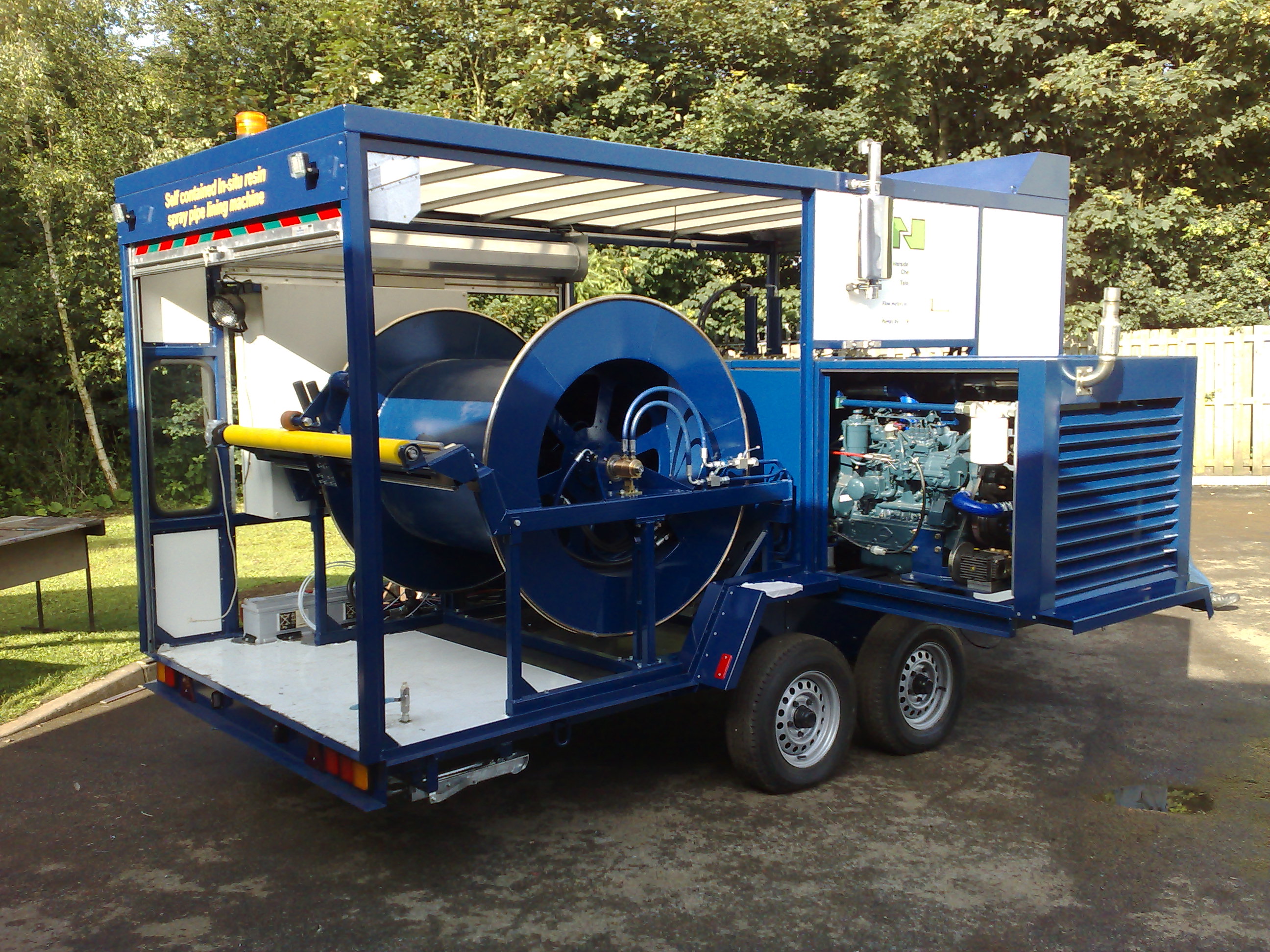

Lining Machinery
We manufactured lining machines for our own contracting division to give ourselves a competitive advantage.
Reliability was the main reason we kept the best machinery for ourselves and at that time we did not supply our competition.
We now manufacture lining machinery to order, please use the Contact Form >> for any enquiries.
Our lining machines feature significant differences to other lining machines which results in many advantages
- Sealless Pump (very low maintenance)
- Reactive mix ratio control (Computer controlled independant pumps continually adjust the ratio).
- Instant Ratio changes for different resins without the need for physical pump leg changes.
- Unlimited addition of resin whilst lining (160 Metre of Ø1200mm pipe 3 mm thick = 1800 Litre).
- Smaller resin reservoirs, less waste and reduced costs.
- Maximum 3,500 Kg.
- 0.25 metre / min to 10 metre / min umbilical speed.
- 2.3 Litre Diesel Engine (100% load = max fuel consumption 11 Litre per hour).
- Built in Compressor (No other machinery required on site for the rig operation).
- Suction filteration to 0.5 mm (30 mesh).
- Very high pressure rotary union (350 Bar).
